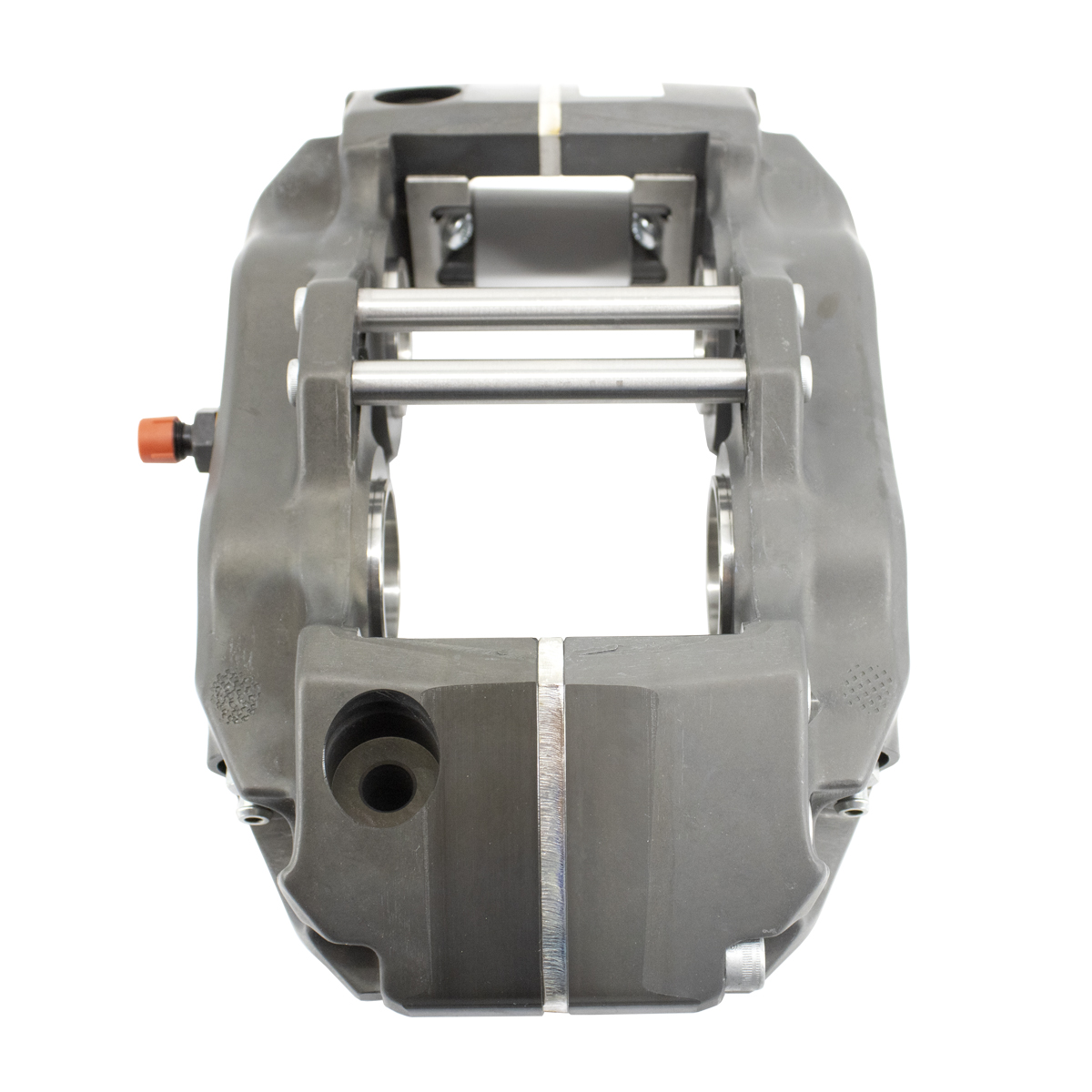

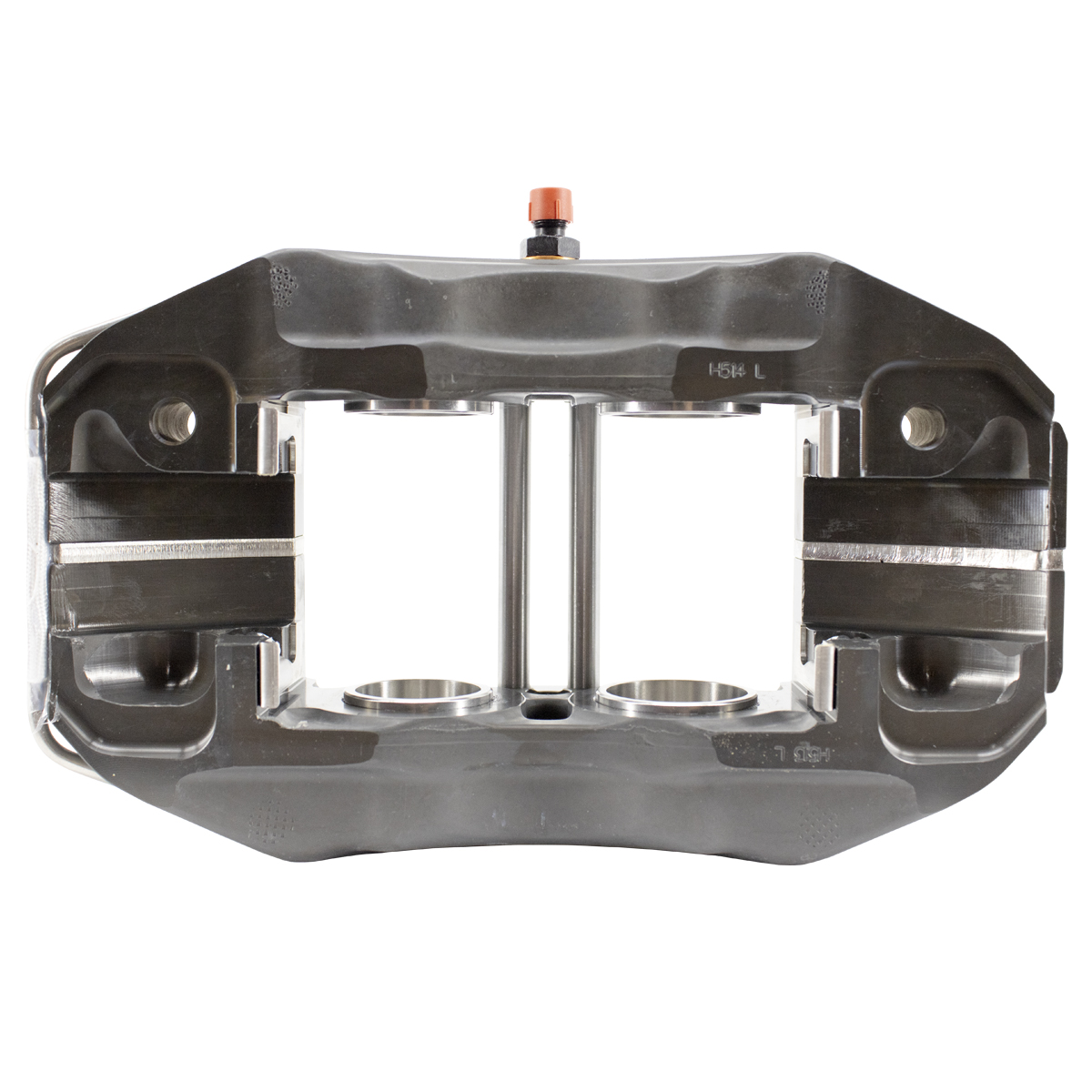

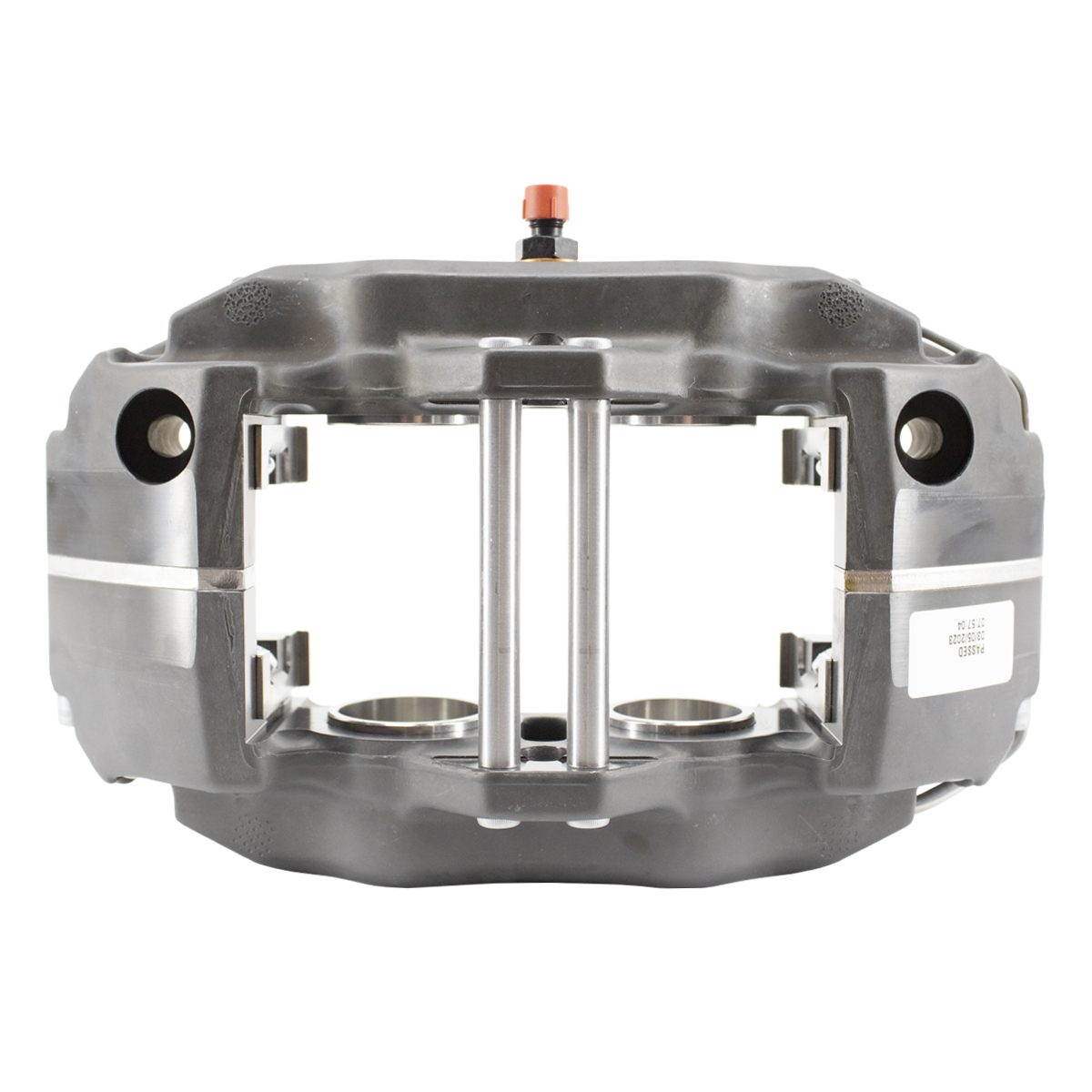

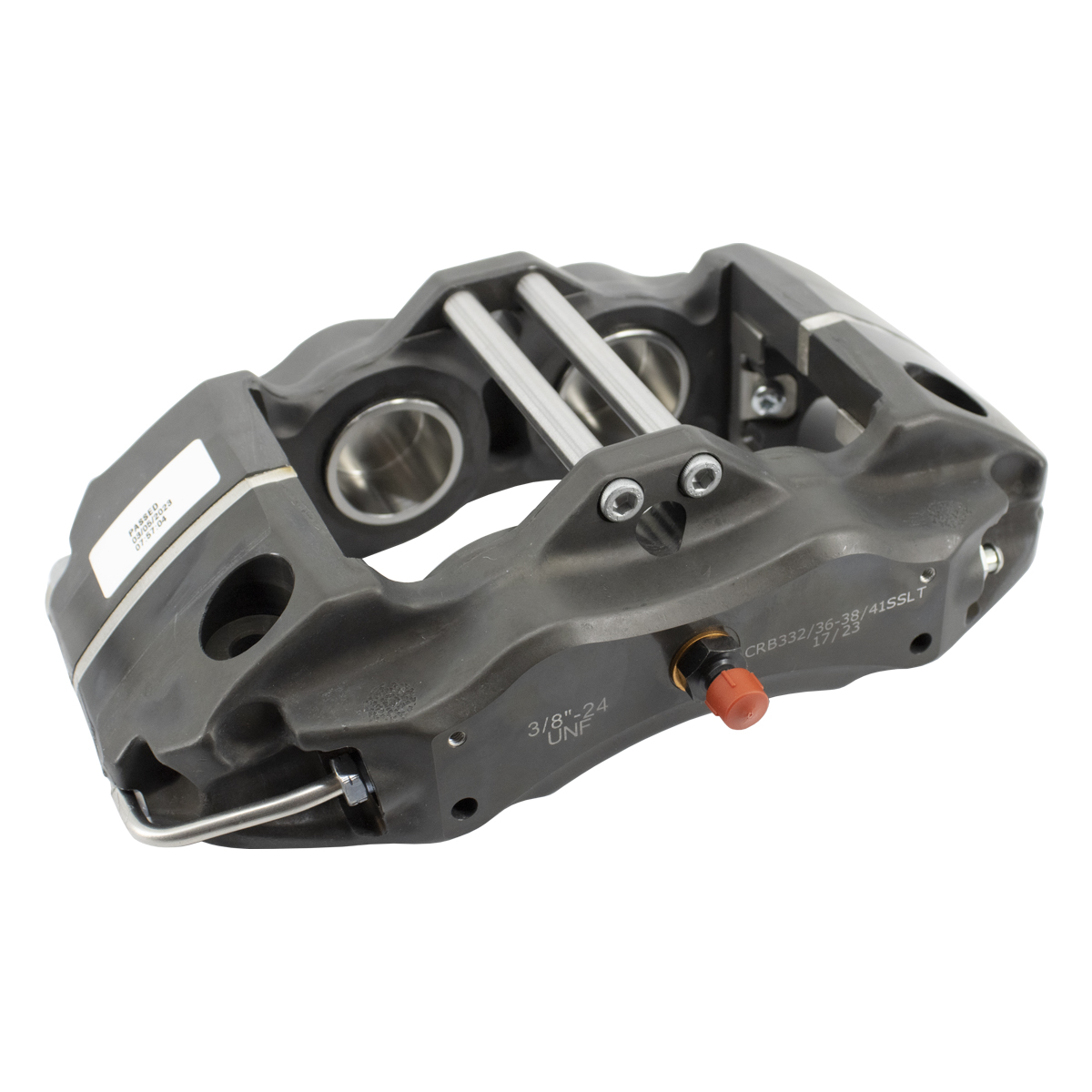

Alcon - CRB332 - 4 Piston Brake Caliper

This Alcon brake caliper provides great braking power in the most sever conditions. Designed for Road Racing, Short Track, and Rally. Uses a Radial Brake Mount with its own specified brake pad.

Commonly used in Stock Car, TA2, Rally, and Road Racing.

Features:
• Radial mount for maximum rigidity and firm, consistent pedal
• Differential piston diameters to minimize pad taper wear
• Aluminum pistons as standard, stainless steel pistons available as an option to reduce heat transfer to brake fluid
• 2kg anti-knock back springs

*Uses Pagid RST Brake Pads

Specifications:
• Disc diameter range Ø285 – 332mm
• Disc thickness range CRB332/30 26 – 30mm
• Disc thickness range CRB332/32 28 – 32mm
• Fluid inlet 3/8-24 UNF (-3) female
• Dry weight 2.40kg excluding pads
• Alcon pad reference 4441 or 4423, 16mm thick, 132mm long, 50mm deep, area 133cm2 per caliper
Hard stainless steel wear plates
• Fixed pad retainer
